SPIn USB as Fallback

Overview

The SPIn USB API can be used as a fallback option in case of network failure, SPIn Cloud (opens in a new tab) unavailability, or connectivity disruptions. When using SPIn USB, integrators do not need to modify their existing integration logic. The only difference is that, instead of sending requests to SPIn Cloud, the transaction data is sent directly to the terminal via USB.

Ensure the USB connection between the payment terminal and the host system (register) is properly established. If the host device does not have a USB port, an OTG cable can be used to complete the connection.

SPIn USB is also a recommended option for performing transactions in Offline Mode. For Offline Mode to work, it must be enabled for the terminal’s TPN. Make sure Offline Mode is enabled for your TPN before using this feature.

Click here (opens in a new tab) to learn how to enable Offline Mode for your TPN.

Requirements

Hardware Requirements

Android device with USB Host support
Dejavoo P17 POS device supporting USB serial communication
USB OTG support (for mobile devices and tablets)
USB cable compatible with Windows

Android Requirements

Minimum SDK 21 or higher
USB Host feature enabled
hoho usb-serial library integrated

How to Enable the USB Fallback Option (Parameters)

Follow the steps below to enable the USB Fallback option for a merchant using the iPOSpays portal.

Log in to the iPOSpays portal using an ISO Admin account.

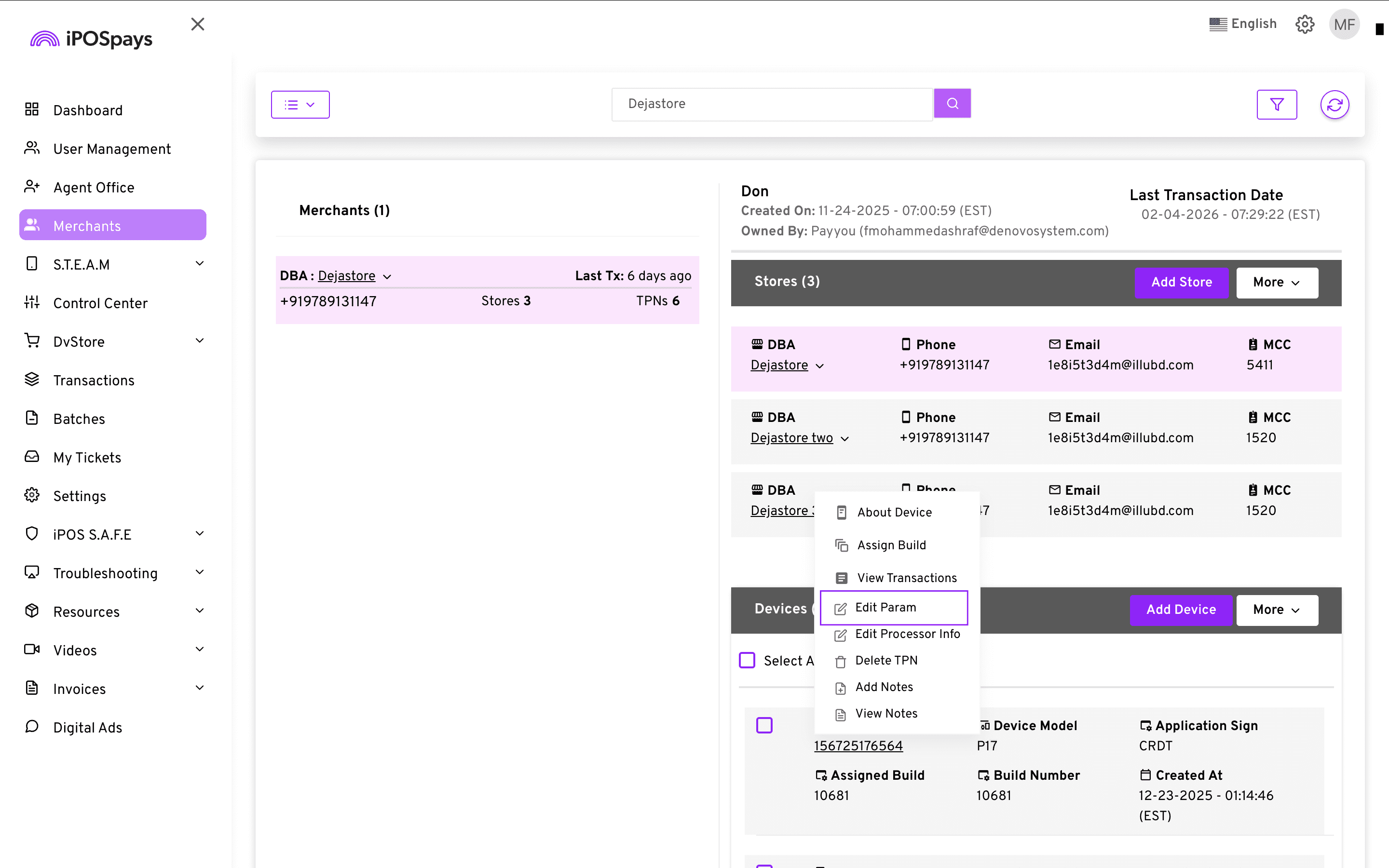

Click on Merchants and use the search box to find and select the required merchant.
Under Devices → select the appropriate TPN from the dropdown → click Edit Param.

Go to the Integration section.

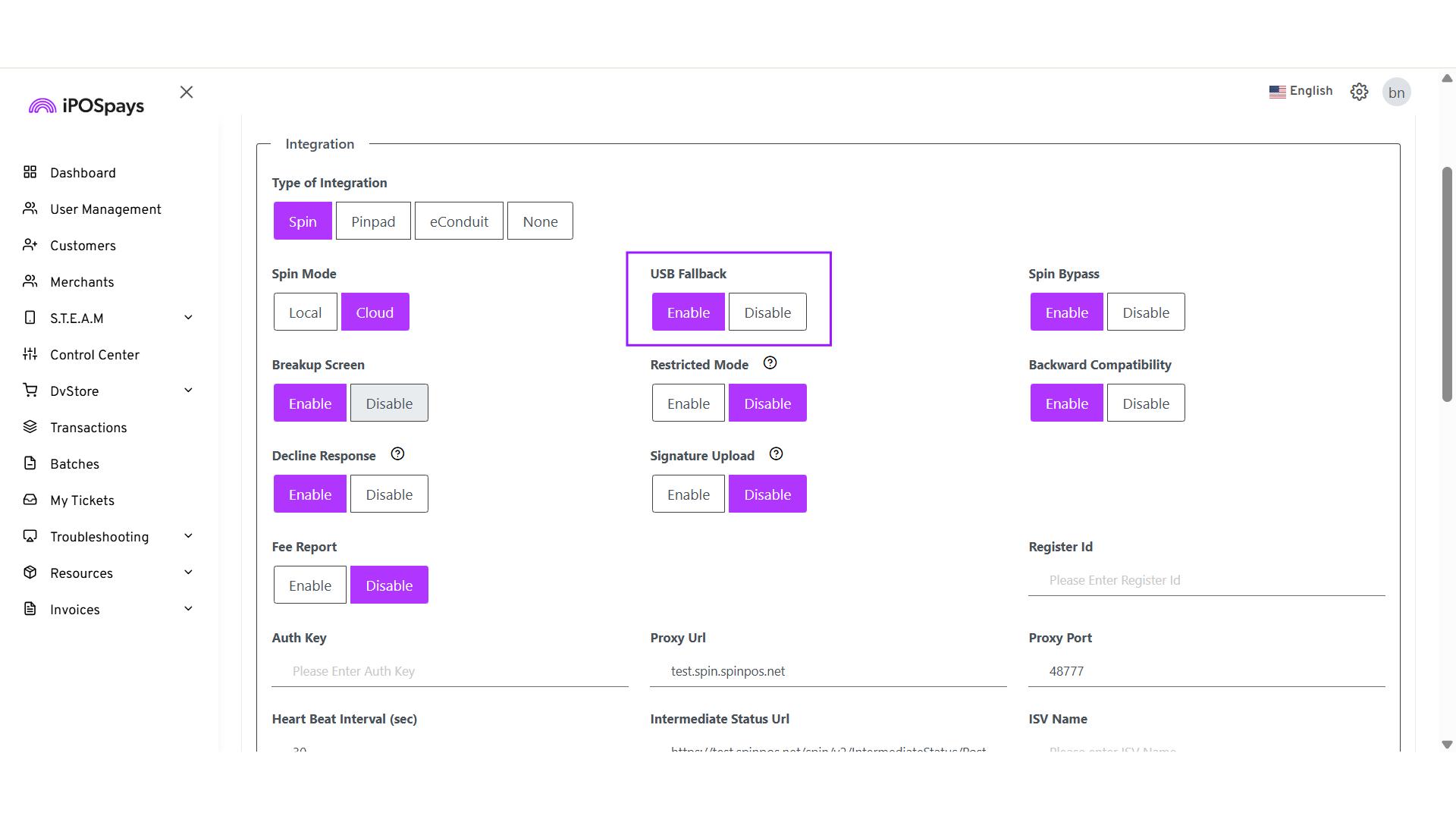

If Cloud is selected as the SPIn Mode, the USB Fallback option will be displayed.
Enable the USB Fallback option.

Click Save to store the changes.
Perform a parameter update on the payment terminal for the changes to take effect.

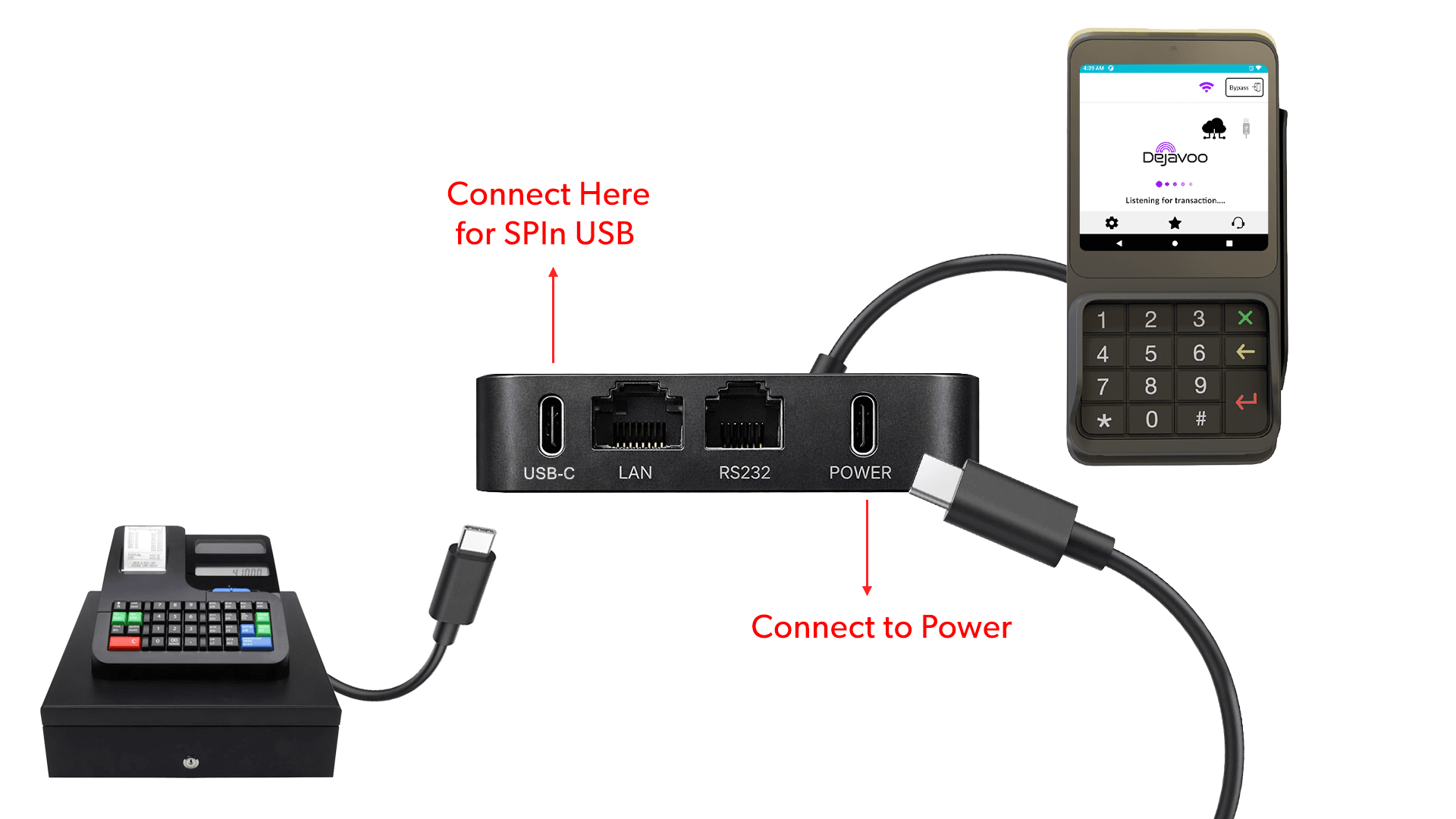

How to Connect the USB-Cables on P17

Follow the steps below to correctly connect the USB cables on the P17 terminal.

The P17 terminal comes with a USB hub attached.
The USB hub has two USB-C ports, one on each end at the top of the hub.

Connect a USB-C cable from a power supply to the port labeled “POWER.”
Connect another USB-C cable from the port labeled “USB-C” to your register for SPIn USB.
Ensure both connections are secure before proceeding with transactions.

After connecting the terminal, the SPIn Cloud and USB logo will appear on the amount entry screen.

Project Setup

Gradle Dependency

Add the following dependency to your build.gradle (app) file:

implementation 'com.github.mik3y:usb-serial-for-android:3.8.1'

Android Manifest Configuration

<uses-permission android:name="android.permission.QUERY_ALL_PACKAGES" />
<uses-permission android:name="android.permission.USB_PERMISSION" />
<uses-feature android:name="android.hardware.usb.host" />
<uses-feature android:name="android.hardware.usb.accessory" />

Enable USB Host Feature

<uses-feature android:name="android.hardware.usb.host" />
<uses-permission android:name="android.permission.QUERY_ALL_PACKAGES" />
<uses-permission android:name="android.permission.USB_PERMISSION" />
<uses-feature android:name="android.hardware.usb.host" />
<uses-feature android:name="android.hardware.usb.accessory" />

Add USB Permission Intent Filter

<receiver
    android:name=".device.UsbReceiver"
    android:exported="true">

    <intent-filter>
        <action android:name="android.hardware.usb.action.USB_DEVICE_ATTACHED" />
        <action android:name="android.hardware.usb.action.USB_DEVICE_DETACHED" />
        <action android:name="com.example.USB_PERMISSION" />
    </intent-filter>

</receiver>

Application Scope

The USB connection must persist between activities
Maintain a single serial port instance across the application

USB Connection Flow

Step 1: Initialize USB

private lateinit var usbManager: UsbManager
fun init(context: Context) {
	usbManager = context.getSystemService(Context.USB_SERVICE) as UsbManager
}

Step 2: Detect USB Devices

val drivers = UsbSerialProber.getDefaultProber()
	.findAllDrivers(usbManager)
if (drivers.isEmpty()) {
	Log.d("USB", "No USB devices found")
	return
}

Step 3: Request USB Permission

private const val ACTION_USB_PERMISSION = "com.app.USB_PERMISSION"

 private fun requestPermission(device: UsbDevice) {
 	val intent = Intent(ACTION_USB_PERMISSION)
 	val pendingIntent = PendingIntent.getBroadcast(
     	context,
     	0,
     	intent,
     	PendingIntent.FLAG_UPDATE_CURRENT or PendingIntent.FLAG_MUTABLE
 	)
 	usbManager.requestPermission(device, pendingIntent)
 }

Step 4: Open Serial Port

private var serialPort: UsbSerialPort? = null
private fun openDevice(device: UsbDevice) {
	val driver = UsbSerialProber.getDefaultProber()
    	.findAllDrivers(usbManager)
    	.find { it.device == device } ?: return
	val port = driver.ports.first()
	val connection = usbManager.openDevice(device) ?: return
	port.open(connection)
	port.setParameters(
    	115200,
    	8,
    	UsbSerialPort.STOPBITS_1,
    	UsbSerialPort.PARITY_NONE
	)
	serialPort = port
}

Step 5: Write Data to USB

fun write(request: String) {
 	val port = serialPort ?: return
 	val sendBytes = (request + "\r\n")
     	.toByteArray(Charsets.UTF_8)
 	port.write(sendBytes, 3000)
 }

Step 6: Read Data From USB

fun read(): String? {

 	val port = serialPort ?: return null

 	val buffer = ByteArray(2048)
 	val readBuffer = StringBuilder()
 	val startTime = System.currentTimeMillis()

 	while (System.currentTimeMillis() - startTime < 120_000) {

     	val len = port.read(buffer, 1000)

     	if (len > 0) {
         	val chunk = String(buffer, 0, len, Charsets.UTF_8)
         	readBuffer.append(chunk)

         	if (readBuffer.contains("</xmp>")) {
             	return readBuffer.toString()
             }
     	}
 	}

 	return null
 }

Standard POS Configuration

Baud Rate: 115200
Data Bits: 8
Stop Bits: 1
Parity: None

Recommended USB Integration Flow

On USB Attach

Detect the device using

ACTION_USB_DEVICE_ATTACHED

Check permission using

usbManager.hasPermission(device)

If permission is not granted → call:

requestPermission()

Once permission is granted → open the serial port and initialize communication

On USB Detach

Receive

ACTION_USB_DEVICE_DETACHED

Close the serial port
Clean up resources
Mark the device state as Disconnected

Connection State Handling

Disconnected State

Condition

serialPort?.isOpen == false

Triggered When

USB cable is removed
POS device is powered off
Physical connection is lost
USB device is detached by the system

System Broadcast

UsbManager.ACTION_USB_DEVICE_DETACHED

Recommended Handling

Close the serial port
Release allocated resources
Update the UI to show “Disconnected”
Safely stop any ongoing transactions
Prompt the user to reconnect the device

USB Permission Handling

When the Permission Popup Appears

The system permission dialog appears when:

A USB device is attached
requestPermission() is called
Permission was not previously granted

When the Popup Will NOT Appear

The permission dialog will not appear when:

Permission was already granted earlier
The same device remains connected
The app process is still running
The user has not revoked permission from device settings

Perform Transactions

Prepare SPIn Request XML

<request>
    <TransType>Sale</TransType>
    <PaymentType>Credit</PaymentType>
    <Amount>103.00</Amount>
    <Tip>0.00</Tip>
    <CashbackAmount>0.00</CashbackAmount>
    <Frequency>OneTime</Frequency>
    <CustomFee>0.00</CustomFee>
    <RegisterId>1234</RegisterId>
    <AuthKey>vPXjq5X8fn</AuthKey>
    <PrintReceipt>No</PrintReceipt>
    <SigCapture>No</SigCapture>
    <RefId>DL637766455727</RefId>
</request>

Request Parameters

Name	Data Type	Description
TransType *	String	Type of transaction to perform (Sale, Refund, Void, PreAuth, etc.).
PaymentType *	String	Payment method used for the transaction (Credit, Debit, EBT, Wallet, etc.).
Amount *	Decimal/String	Base transaction amount to be charged (2 decimal precision).
Tip	Decimal/String	Tip amount added to the transaction.
CashbackAmount	Decimal/String	Cashback amount requested by the customer (applicable for debit transactions).
Frequency	String	Transaction frequency (OneTime, Recurring, Installment, etc.).
CustomFee	Decimal/String	Additional service or convenience fee applied to the transaction.
RegisterId *	String	Terminal or register identifier from which the transaction is initiated.
AuthKey	String	Merchant authentication key or API credential for request validation.
PrintReceipt	String	Indicates whether receipt printing should be triggered after transaction.
SigCapture	String	Indicates whether signature capture is required.
RefId *	String	Unique reference ID for tracking the transaction (should be unique per request).

Send to POS & Android Receiving Part

fun sendAndReceive(request: String, callback: UsbPosCallback) {
    val port = serialPort

    if (port == null || !port.isOpen) {
        callback.onResult(null, 0)
        return
    }

    thread {
        try {
            // IMPORTANT: Clear buffer before new request
            readBuffer.setLength(0)

            // -------- SEND --------
            val sendBytes = (request + "\r\n")
                .toByteArray(Charsets.UTF_8)

            port.write(sendBytes, 3000)

            Log.i(TAG, "USB SENT bytes=${sendBytes.size}")

            // -------- RECEIVE --------
            val result = readResponseWithBytes(port)
            callback.onResult(result.first, result.second)

        } catch (e: Exception) {
            Log.e(TAG, "USB send/receive error", e)
            callback.onResult(null, 0)
        }
    }
}

This function:

Validates that the serial port is open.
Clears the read buffer before sending a new request.
Sends the XML request to the POS device via USB.
Waits for and reads the POS response.
Returns the response XML and byte count through the callback.

SPIn XML Response

<?xml version="1.0" encoding="UTF-8"?>
<xmp>
    <response>
        <RefId>DL637766455727</RefId>
        <RegisterId>1234</RegisterId>
        <AuthCode>VTLMC1</AuthCode>
        <PNRef>604309503766</PNRef>
        <TransNum>5</TransNum>
        <ResultCode>0</ResultCode>
        <Message>Approved</Message>
        <RespMSG>APPROVAL%20VTLMC1%20</RespMSG>
        <PaymentType>Credit</PaymentType>
        <Voided>false</Voided>
        <TransType>Sale</TransType>
        <SN>P17B2240525000037</SN>

        <ExtData>
            Amount=106.09,
            dueAmnt=,
            isPartialApprovalTxn=false,
            approvedAmnt=,
            InvNum=5,
            CardType=MASTERCARD,
            cardBrandType=,
            Tip=10.61,
            Fee=0.00,
            Disc=0.00,
            DiscLabel=,
            BatchNum=298,
            CashBack=0.00,
            AcntLast4=5454,
            AcntFirst4=5454,
            BIN=545454,
            Name=DenovoPay,
            FeeLabel=,
            BaseAmount=106.09,
            TxnCode=1,
            TaxCity=0.00,
            Tax1Label=,
            customCashMessage=,
            customCreditMessage=,,
            TaxState=0.00,
            Tax2Label=,
            TaxCommercial=0.00,
            TipLine=0,
            RespCode=00,
            RRN=604309503766,
            TraceNum=5,
            HostTxnId=1212MCC111600,
            txnId=00000293802512241920260212040513,
            PrintSaveMsg=,
            isIbs=false,
            isSurChargeApplied=false,
            isFeeAppliedForDebitCard=true,
            isDiscloseFeeToCustomer=true,
            isPockytWalletMode=false,
            L2L3flag=,
            TxnType=1,
            EntryType=Manual Entry,
            TotalAmt=116.70,
            TaxAmount=0.00,
            isGiftMode=false,
            GiftBalAmount=,
            Balance=,
            EBTFSAvailBalance=,
            EBTCashAvailBalance=,
            ebtCashBalAmount=,
            isWalletMode=false,
            txnLabel=SALE,
            surveyQuestion=,
            surveyAnswer=,
            walletPayMethod=,
            walletTxnPaymentNum=,
            walletTxnData=,
            deviceId=,
            walletConfirmationId=,
            SignLine=,
            SignPath=,
            profileId=,
            profileName=,
            offlinePin=false,
            fallBackMode=0,,
            networkMode=WIFI,
            txnStartTime=1770887113712,
            txnEndTime=1770887116472,
            pagoWalletFlashMessage=,
            pagoConfirmationCode=,
            pagoCommittedTransactionId=,
            pagoMerchantTransactionId=,
            ReducedTax=,
            ReducedTaxFee=0.00,
            RTaxLabel=,
            ExpDate=1226,
            MSRPLabel=,
            MSRPAmount=,
            DateTime=2026-02-1204:05:13
        </ExtData>

        <iPOSToken>2C9D261ECB3816D92C9D261ECB3816D9AC97B57D06ADD7AA</iPOSToken>
        <HostResponseCode>00</HostResponseCode>
        <HostResponseMessage>APPROVAL%20VTLMC1%20</HostResponseMessage>
    </response>
</xmp>

Transaction Response – Field Definitions (with Sample Data)

Response Object

Field	Description	Sample
RefId	Unique reference ID generated for the request or transaction.	DL637766455727
RegisterId	Merchant register or terminal identifier.	1234
AuthCode	Authorization code returned by host or bank for approved transactions.	VTLMC1
PNRef	Payment network reference number (processor transaction ID).	604309503766
TransNum	Local transaction sequence number.	5
ResultCode	Result status code (0 = Success, non-zero = Failure or Error).	0
Message	Human-readable transaction result message.	Approved
RespMSG	Host response message.	APPROVAL VTLMC1
PaymentType	Payment method type.	Credit
Voided	Indicates whether the transaction was voided.	FALSE
TransType	Transaction type.	Sale
SN	Device serial number.	P17B2240525000037
ExtData	Additional transaction metadata object.	—
iPOSToken	Tokenized card reference for future or token-based transactions.	2C9D261ECB3816D92C9D26
HostResponseCode	Processor or host response code.	0
HostResponseMessage	Processor or host response message.	APPROVAL VTLMC1

ExtData Object – Field Definitions [Amount Details]

Field	Description	Sample
Amount	Base transaction amount.	106.09
Tip	Tip amount.	10.61
Fee	Convenience or service fee.	0
Disc	Discount amount.	0
BaseAmount	Original sale amount before tip or fees.	106.09
TotalAmt	Final charged amount.	116.7
TaxAmount	Total tax amount.	0
TaxCity	City tax amount.	0
TaxState	State tax amount.	0
TaxCommercial	Commercial tax amount.	0
ReducedTax	Reduced tax amount.	—
ReducedTaxFee	Reduced tax fee.	0

Card Details

Field	Description	Sample
CardType	Card brand.	MASTERCARD
BIN	First 6 digits of the card.	545454
AcntFirst4	First 4 digits of the card.	5454
AcntLast4	Last 4 digits of the card.	5454
ExpDate	Card expiry date.	1226
EntryType	Card entry mode.	Manual Entry

Transaction Identifiers

Field	Description	Sample
InvNum	Invoice number.	5
BatchNum	Batch number.	298
TxnCode	Processor transaction code.	1
TxnType	Numeric transaction type identifier.	1
txnId	Unique system transaction ID.	00000293802512241920260212040513
TraceNum	Terminal trace number.	5
RRN	Retrieval reference number.	604309503766
HostTxnId	Host transaction identifier.	1212MCC111600
txnLabel	Transaction label.	SALE

Status Flags

Field	Description	Sample
isPartialApprovalTxn	Indicates whether the transaction was partially approved.	FALSE
isIbs	Internal business flag.	FALSE
isSurChargeApplied	Indicates whether a surcharge was applied.	FALSE
isFeeAppliedForDebitCard	Indicates whether a fee was applied for debit card transactions.	TRUE
isDiscloseFeeToCustomer	Indicates whether the fee was disclosed to the customer.	TRUE
isGiftMode	Indicates whether this is a gift card transaction.	FALSE
isWalletMode	Indicates whether this is a wallet transaction.	FALSE
offlinePin	Indicates whether offline PIN was used.	FALSE
fallBackMode	Fallback transaction indicator.	0

REST API Freedom to Design
